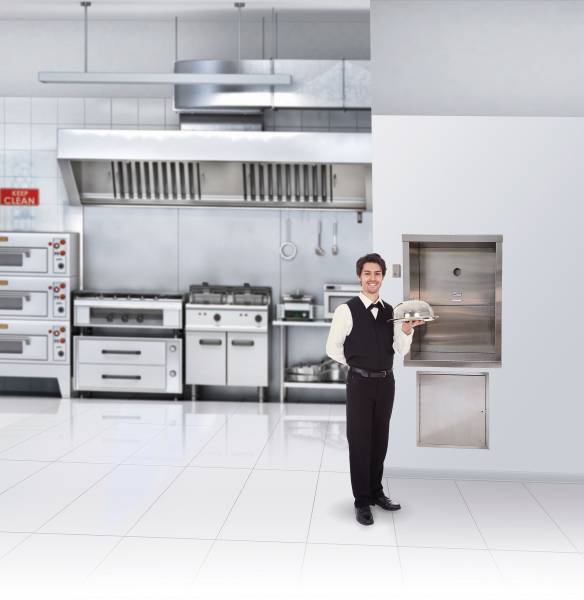

  • Photo-EL-403-monte-plats-retaurant

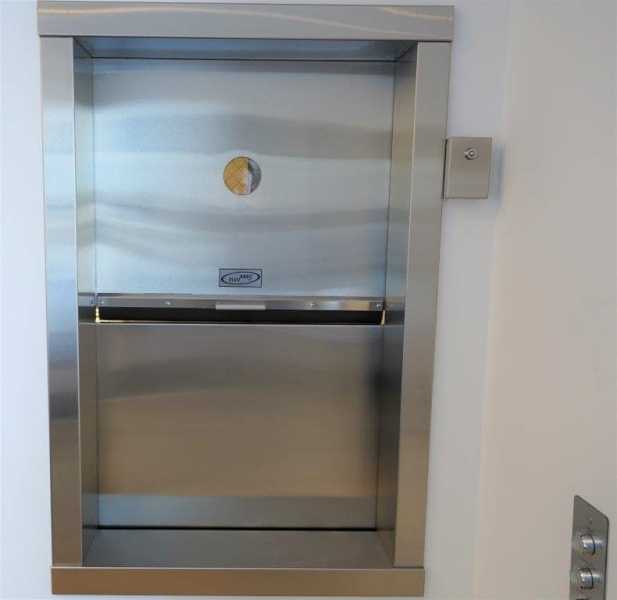

  • Porte-guillotine-palier-EL-403-L0-min

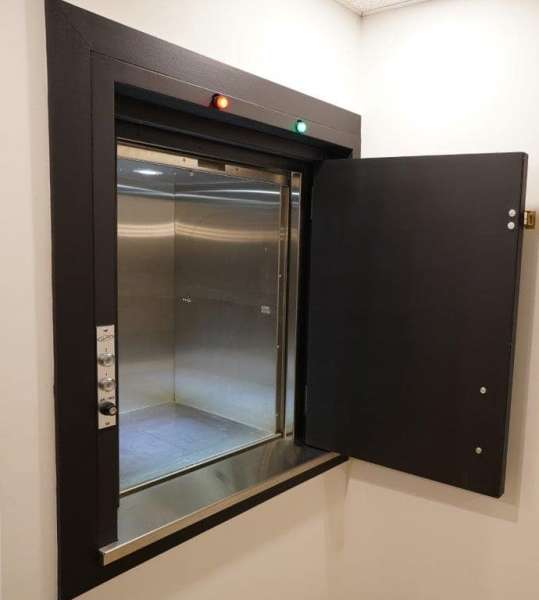

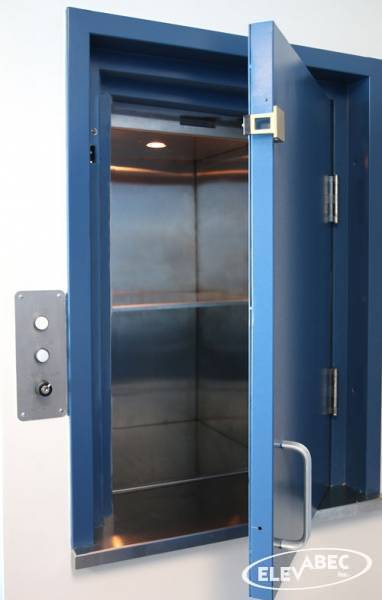

  • Porte-palier-battante-EL-403-L8-1-min

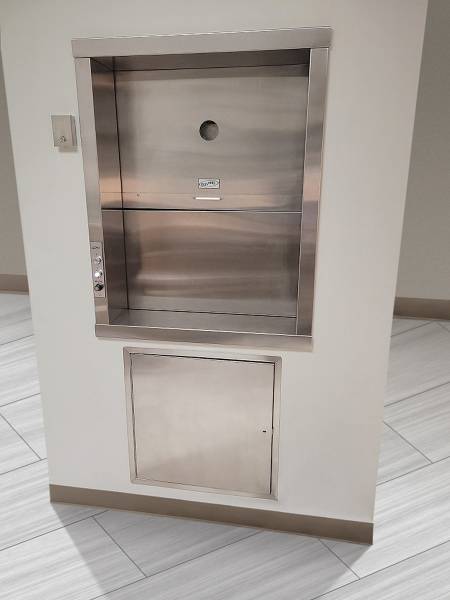

  • EL-403-shooting-1

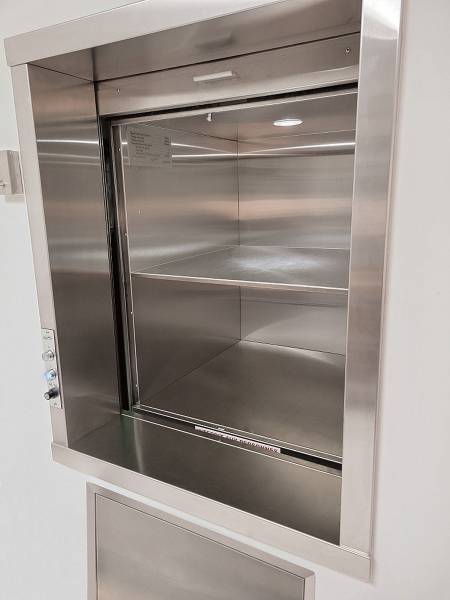

  • EL-403-shooting-2

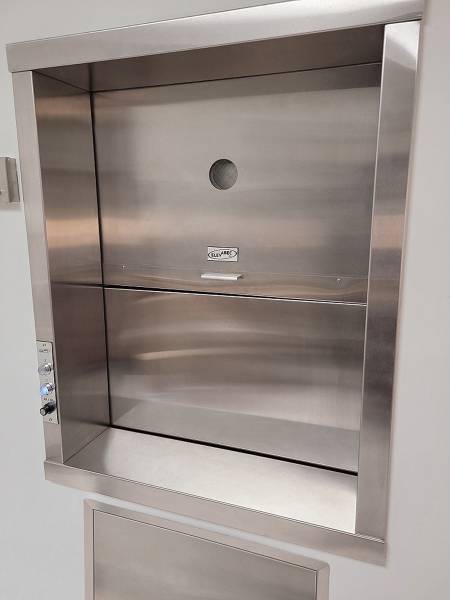

  • EL-403-shooting-3
  • Monte-charge (monte-plats EL-403)

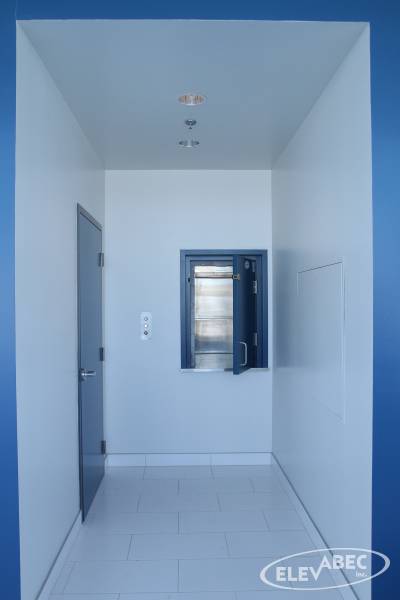

  • Monte plats (Monte-plats) Monte-charge EL-403

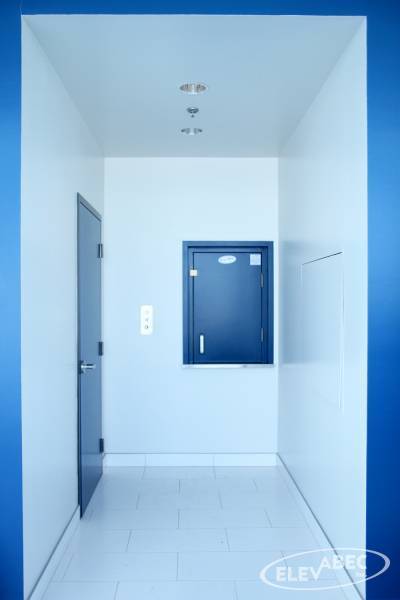

  • Porte Monte plats, monte charge (Monte-charge EL-403)
  • monte-charge (Monte-plats EL-403)

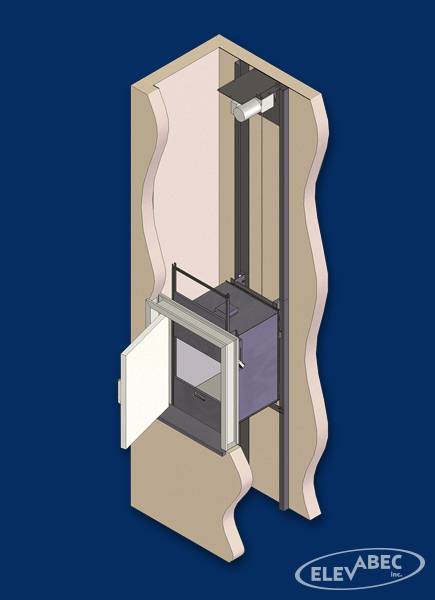

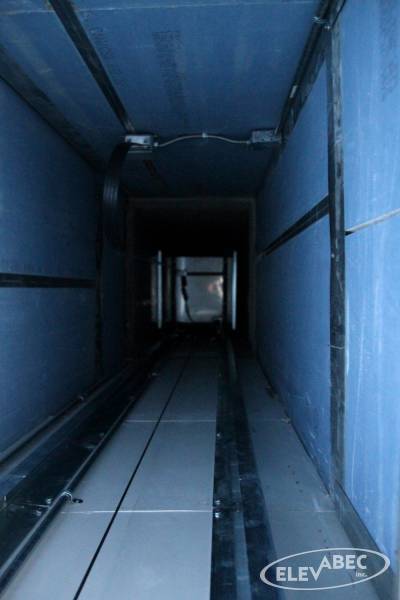

  • Puits Monte-plats EL-403


See our achievements

Dumbwaiter EL-403

# Product number : EL-403

Description

Service lift designed to ease the handling of dishes, trays, logs or any such small objects from one floor to another as well as to improve users’ safety. It takes very little space and its use is completely safe. This small service lift will save you time and money whilst it will become an essential tool for your ease and safety. Designed according to in-force standards, it can be installed in institutional and commercial facilities… and, why not, in your home?

Benefits

  • Fits in small space
  • Safe
  • Moves smoothly
  • Noiseless mechanism
  • Easy to use
  • Requires little care

Technical specifications

  • Model: EL-403, Service lift
  • Category: Service lift
  • Shaft: closed
  • Standard: CSA/B44 section 07
  • Maximum course/trajectoire: 30’ high
  • Capacity according to standard measures: 20” x 20” x 36” – 115 lb / 52 kg 24” x 24” x 36” – 166 lb / 75 kg 30” x 30” x 36” – 260 lb / 118 kg
  • Power supply: 220
  • Mechanic drive: Cable and drum
  • Approximate speed: 0.14 meter/second (28’/minute)
  • Direct action control knob (upon pressing)
  • Mechanical chamber: Minimal dimensions required, takes little space
  • Safety device on the landing doors keeping the service lift from moving if:
    • A door is not closed correctly
    • The lift is in operation
    • The lift is not on the floor

Equipment included

  • Built-in lights in cabin
  • Guillotine-type cabin door
  • 90 ULC fireguard landing door
  • Remote control on each floor
  • Remote control ON/OFF on each floor
  • Stainless steel cabin (food grade 304)

Options and equipment available

  • Stainless steel shells in the cabin
  • Various cabin sizes
  • Trajectory higher than 30’
  • Other types of landing doors
