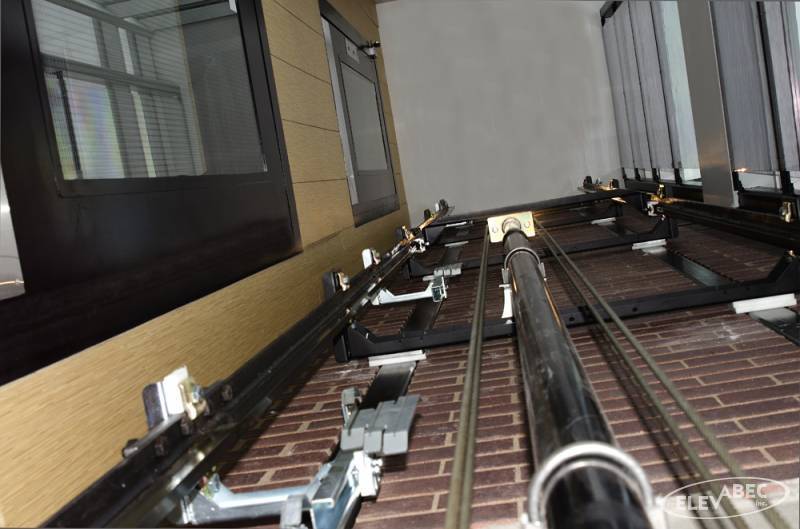

  • Rails ascenseur (Plate-forme élévatrice)
  • Cylindre hydraulique ascenseur


See it in action

Available configurations

Plusieurs formats possibles, maximum 2 mètres carré de surface, 32 à 42 pouces de large par 50 à 84 pouces de long.
Configuration

Benefits

• Faster and quieter • Moves smoothly • Takes little space • Easy to use • Noiseless mechanism • Stable and strong • Finishing harmonized with surrounding decor • Requires little care

Aerial platform, Harmonie AC

# Product number : EL-103V2

Description

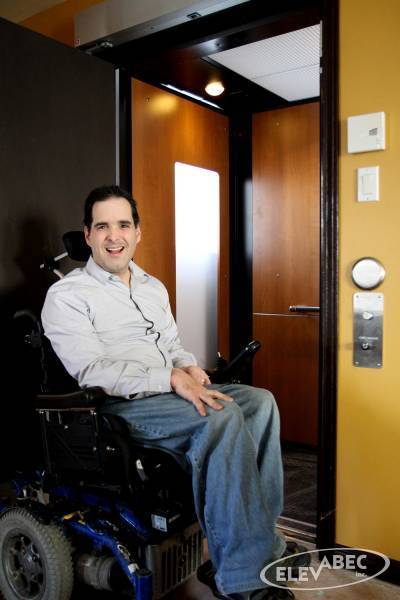

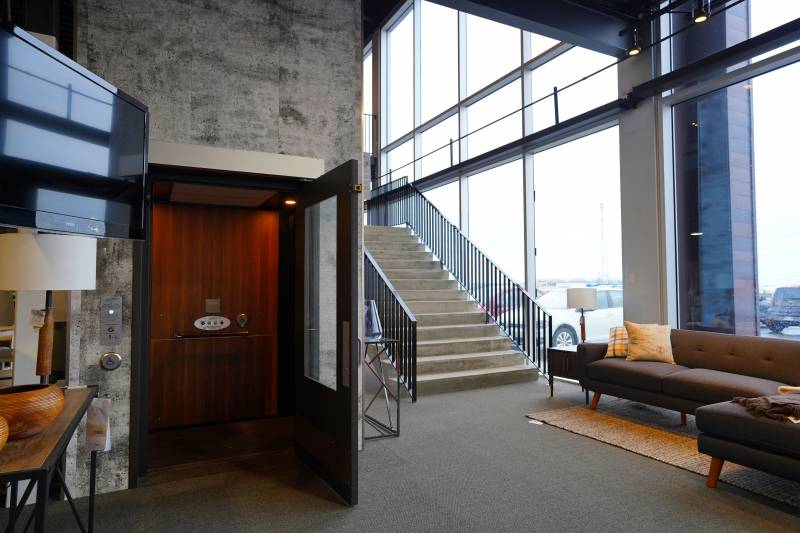

Harmonie is an indoor vertical trajectory elevator platform installed in a closed shaft. Adapted for people with reduced mobility, in wheelchair with or without accompanier, this home lift is designed and approved for commercial, institutional or residential sites. Top-of-the-line in its category.   Harmonie AC: functions on alternating current, and moves faster and more silently. This version is closer to a residential minielevator.

Technical specifications

  • Model: #EL-103V2-AC / Harmonie AC
  • Adapted for people in wheelchair with or without accompanier
  • Category: Elevator platform for people with limited mobility
  • Shaft: closed
  •  Standard: CAN/CSA-B355-09 & CAN/CSA-B613-00
  • Vertical trajectory
  • Maximum trajectory: Public 23’ / 7 m
    • Single-family dwelling 45’ / 13.5 m
  •  Capacity: 750 lb / 340 Kg (Option: 1,000 lb / 453 Kg)
  •  Power supply 208-600Vac/3/60 or 220/1/60 current
  • Mechanic drive: hydraulic cylinder and cables
  • Approximate speed: 28’ to 50’ / minute (0.14 à 0.25 meter / second) according to client’s choice
  • Size: many floor sizes available, up to 2 square meter
    • Maximum length: 84” / 2,134 mm
    •  Maximum width: 42” / 1,067 mm
  • Remote control buttons: maintained pressure
  • Mechanical chamber: Minimum dimensions required; plans available upon request
  •  Safety device on the doors keeping the platformfrom moving if: • A door is not closed correctly • The platform is in operation • The platform is not on the floor
  • Emergency descending: Safety device allowing manual descending in case of emergency

Equipment included

  • 36” anti-skid handrail
  • Anti-skid floor covering

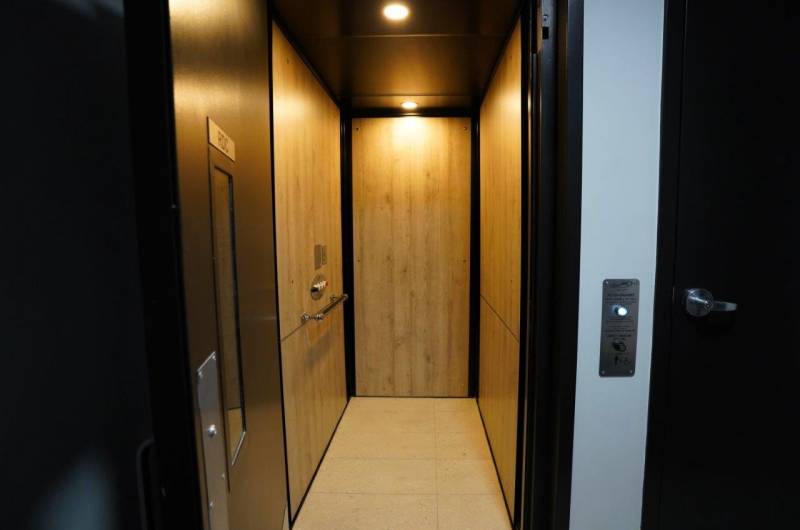

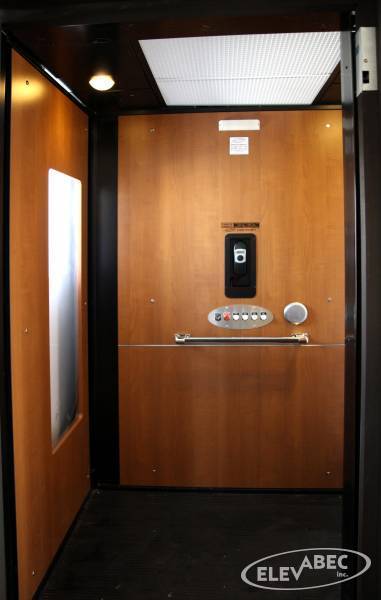

  • Ceiling with integrated eco-energetic light (DEL Type)

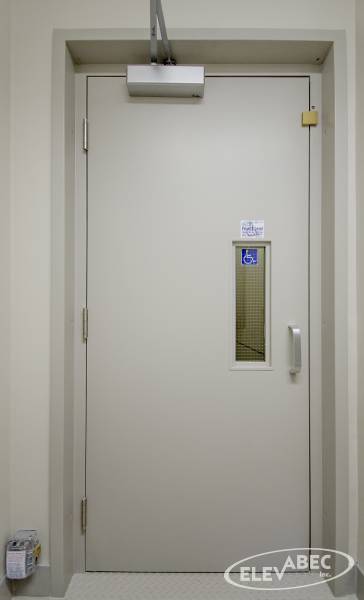

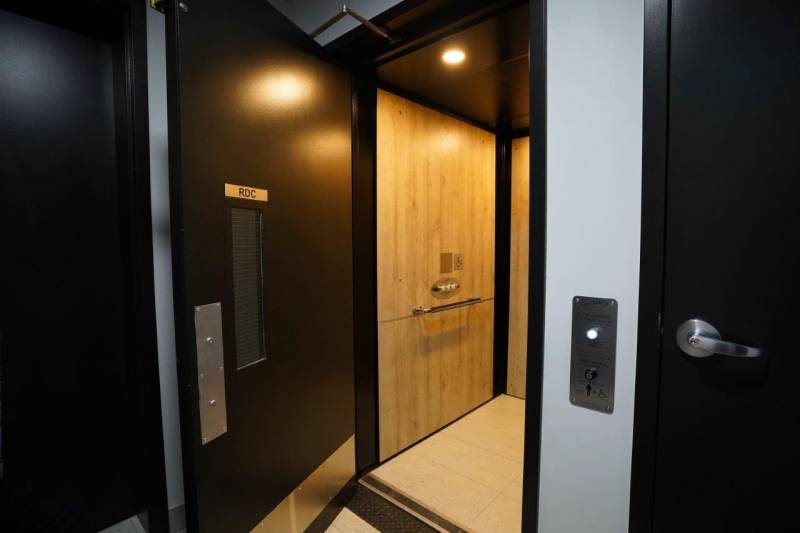

  • Adapted landing doors
  • Melamine finishing in cabin / choice of colour

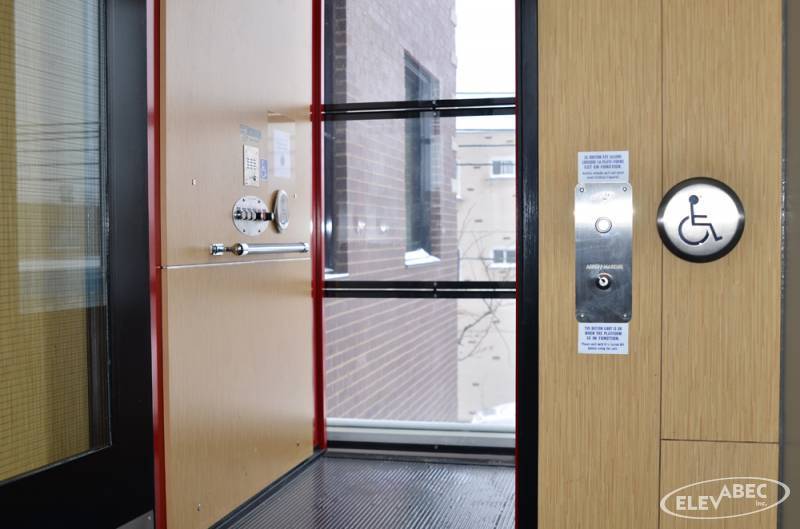

  • Remote control on each floor
  • Remote control ON /OFF in the cabin
  • Remote control ON/OFF on each floor

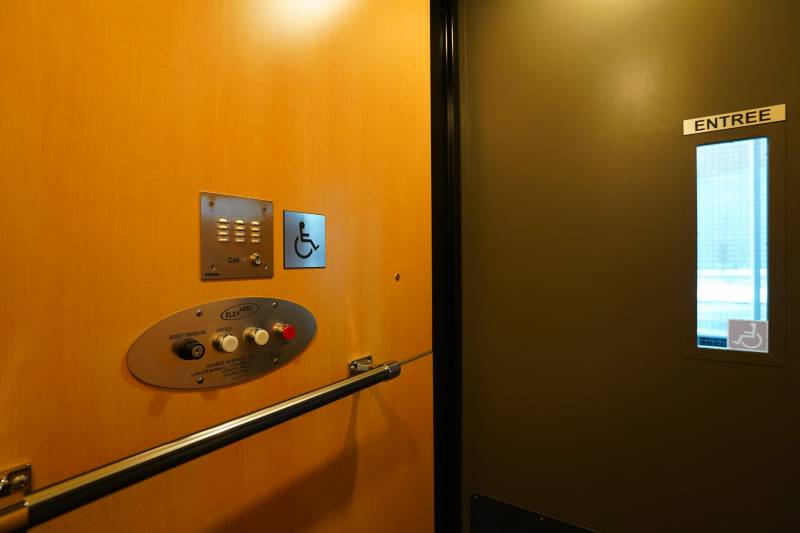

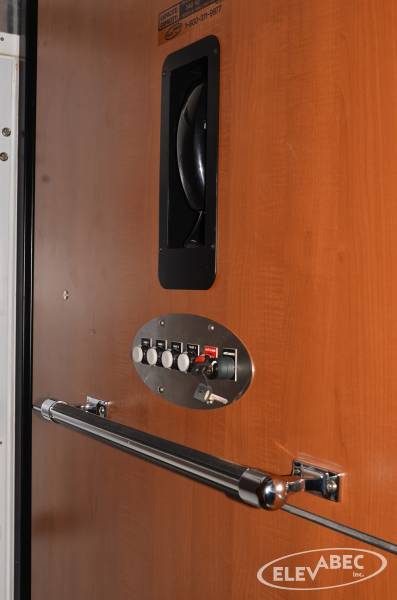

  • Alarm and emergency-stop buttons in the cabin

Options and equipment available

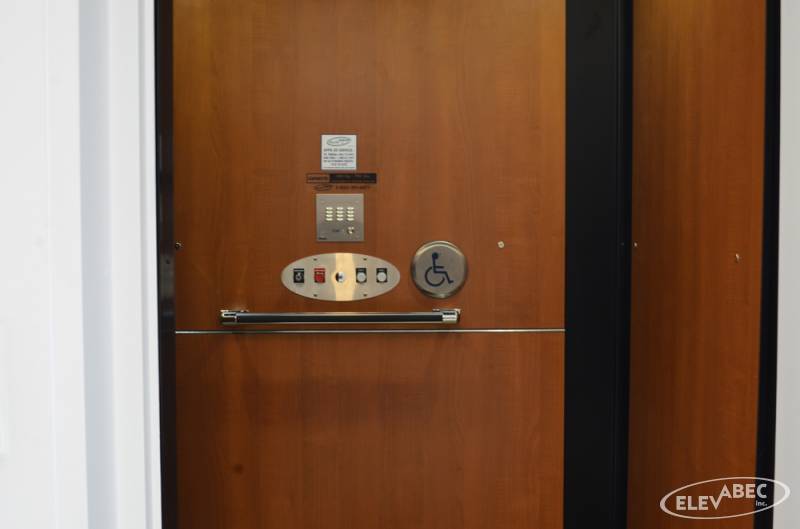

  • Telephone or Intercom in the cabin
  • Automatic door opener
  • Multi-choice finishing panels; you can harmonize the device to your home style
  • Availability of a various models of interior and exterior landing doors adapted according to in force standards
  • Surface or invisible door closers, according to door model
  • Retarded action door closers
  • Various models of control buttons
  • Choice of lights for cabin ceiling
  • Ceiling with integrated lighting (various choices)
