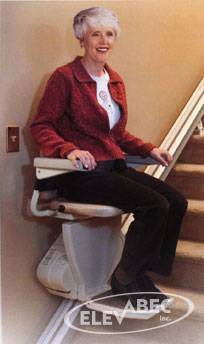

Chair stairlift

  • Chaise monte escalier, lève personne,  monte personne escalier


See it in action

Benefits

  • The most compact on the market
  • Easy to use
  • Easy care
  • Silent

Chair stairlift

Description

The Pinnacle stair seat is easy to use and highly secure. It offers home comfort without affecting the esthetics of your home. So it allows you to optimize your travel for access to floors while reducing the risk of injury and pain related to the effort on the stairs.

Technical specifications

  • Seat : 18 ¾ inches (476 mm) wide and two armrests
  • Hardware type seat Mor-Guard, upscale vinyl washable, antibacterial, chemical resistant and fire
  • Adjustment step: 16 ½ inches (419 mm) to 19 inches (482 mm)
  • Seat Width folded: 10 inches (254 mm)
  • Rail: Aluminium repressed
  • Rail width: 5 ¼ inches (133 mm)
  • Track Length: From 46 inches (1168 mm) to 19 ½ feet (5944 mm)
  • Track color: Matte Aluminum
  • Angle: 32 ° to 52 °
  • Speed: 20 ft / min (0.1 m / s)
  • Capacity: 350 lbs (160 kg)
  • Interchangeable arms: Yes
  • Installation side of the seat: Yes
  • Symmetric: Yes
  • Power supply: 24 V dc battery
  • Power consumption of battery charger: 110V ac; 50-60 Hz
  • Power supplied charger: 24V dc; 2A
  • Engine: In direct drive
  • Drive system: Worm and rack end in Delram

Equipment included

  • Your stairlift will be delivered with seat and rails.

Options and equipment available

  • The limit of the trajectory of the Pinnacle chair is unlimited, provided that it is straight.
